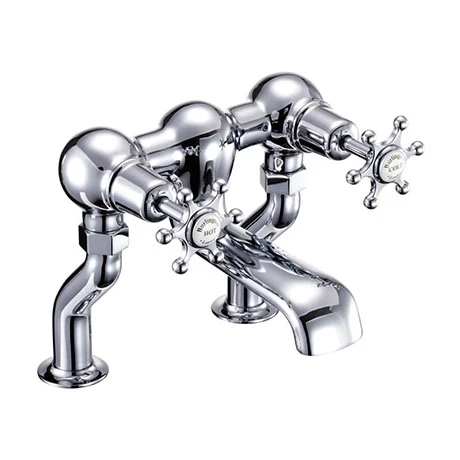

Burlington – Birkenhead Deck Mounted Bath Filler – BI23

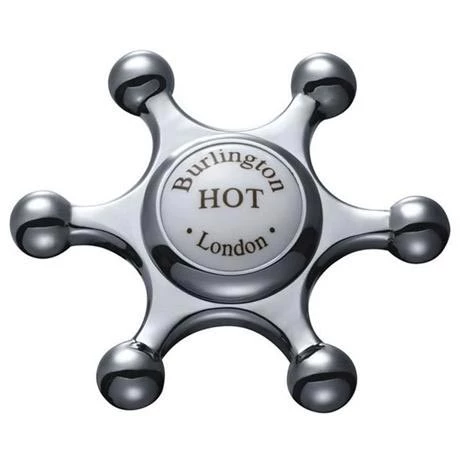

The stylish Birkenhead range has a classic traditional design, designed to be deck mounted this bath filler has been manufactured to the highest standards using the latest technology. All Birkenhead taps have a six spindle tap head with a ceramic indice in the center.

Product Details

• Finishes : Chrome plated
• Product Type : Traditional
• Material : Bodies are of all brass construction
• Weight : 3.1 kg
• Traditional screw-down
• All tap indices are made from ceramic – absolutely no plastic!
• Aerators create the ‘champagne’ effect in the flow of the water
• Flow straighteners make the flow of the water cleaner, so there is less splashing

Guarantee – 15 Year

Additional information

Supplied with flow straighter – this is for use with low water pressure
Supplied with aerator – this is for use with high water pressure

Compliance/Approvals

BS 5412:1996
Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Flow Rates

System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (straightener) 21 21.7 24.2 26.5 28
Spout (aerator) 5.4 10.3 11.5 13.6 15.5
