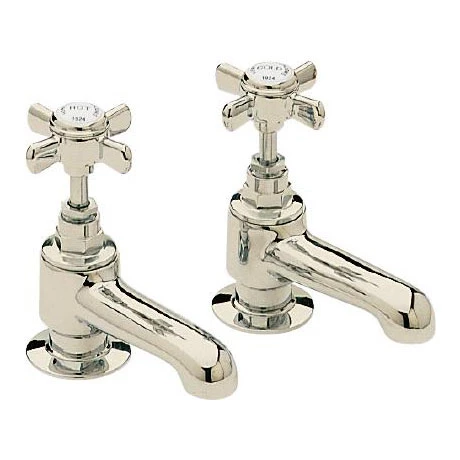

Heritage – Dawlish Bath Pillar Taps – Vintage Gold – TDCG01

• Brand – Heritage Bathrooms
• Product Code – TDCG01
• Finish – Vintage Gold
• Projection – 84mm
• Full Height – 180mm
• Product Type – Bath Taps (pair)
• Main Construction Material – Brass
• Mount Type – Deck Mounted
• Handle Type – Crosshead
• Connection Inlet – 3/4 ” BSP
• Connection Outlet – Open
• Number of Tap Holes – 2
• Valve/Cartridge Type – Quarter Turn 3/4 ” Ceramic Disc
• Plumbing System Requirements – All – Ideally Balanced
• Working Pressure Range – Min. 0.2, Max. 5.0 Bar
• Maximum Hot Water Temperature – 60°C
• Maximum Static Pressure – (bar) 10
• Flow Type – Single Flow
• WRAS approved
• Isolation Included: No

Images are for illustrative purposes.

Flow Rates

0.2 Bar – 16.5 l/m
0.5 Bar – 26 l/m
1.0 Bar – 36.8 l/m
2.0 Bar – 52.1 l/m
3.0 Bar – 63.9 l/m
5.0 Bar – 82.5 l/m
